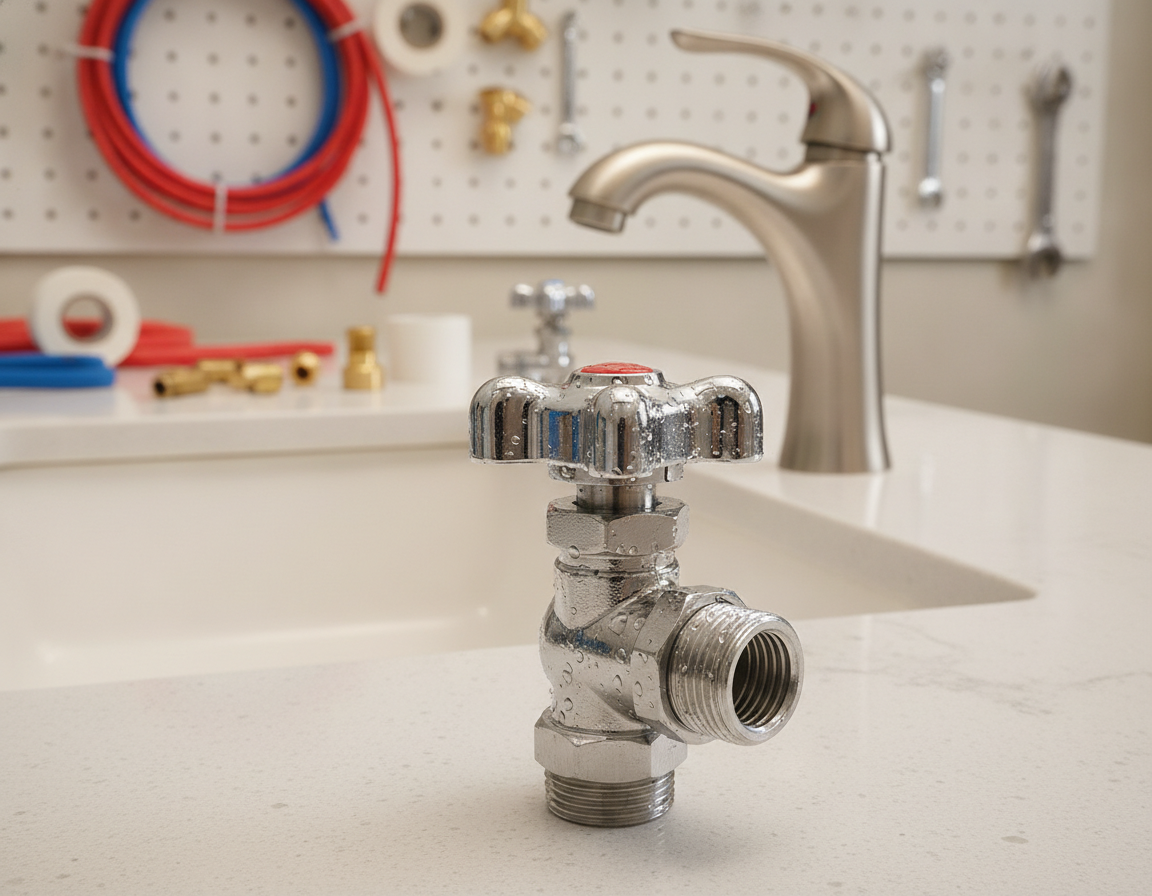

An angle stop is a compact, L-shaped shutoff valve where a water line meets a fixture. These valves are commonly located beneath sinks, behind toilets, and near appliance hookups. When a Plumbing Angle Stop works properly, it allows one fixture to be shut off without interrupting water to the whole home. That means fixture swaps can be completed more easily.

Plumbing Angle Stop
Most home angle stops are 3–6 inches tall and turn water 90 degrees toward the fixture. Today’s installations often use quarter-turn, ball-style Angle Stop Valve models. They are quicker to operate and commonly provide longer service life. If an angle stop corrodes, leaks, or becomes stiff, replacing it helps prevent water damage and simplifies future maintenance.

Main Takeaways

• A Plumbing Angle Stop allows a single fixture to be isolated while the rest of the home stays supplied.
• Angle Stops Plumbing are commonly installed under sinks and behind toilets for easy access.
• An Angle Stop Valve typically measures 3–6 inches and turns water 90 degrees toward the fixture.
• Quarter-turn designs are now preferred for reliability and faster shutoff.
• Any valve that leaks should be replaced before it causes larger water problems.

Understanding An Angle Stop And Why It Matters

The angle stop is a compact shutoff valve installed where a water line meets a fixture. It controls flow to one fixture, allowing repairs or replacements without shutting off the main supply. Homeowners, plumbers, and inspectors depend on these valves to keep maintenance manageable.

Angle Stop Definition Explained

An angle stop is a right-angle valve installed on the supply line feeding a fixture. Angle Stop Valves come in several styles, including older multi-turn stem designs and newer quarter-turn ball designs. The Plumbing Angle Stop fits neatly under sinks and behind toilets while saving space.

Where Home Angle Stops Are Usually Installed

Plumbing Angle Stops are commonly found under kitchen and bathroom sinks. They sit at the back of cabinets where the supply line enters. Toilet stops mount on the wall behind the tank. You will also see angle stops at appliance connections such as dishwashers, ice makers, washing machines, and near some water heaters for cold-water shutoff.

Why Angle Stops Help Homeowners

One main benefit of an Angle Valve For Sink is isolation. A working Plumbing Angle Stop lets you shut off one fixture to replace a faucet or repair a leak. This helps prevent minor leaks from becoming major water-damage events and keeps household disruption lower.

Convenience is another key benefit. Angle Stops Plumbing are easy to reach, helping reduce repair time and inconvenience. Turning the valve periodically helps keep it from sticking. Upgrading old multi-turn stops to modern quarter-turn Angle Stop Valve models speeds emergency responses and lowers stress.

How An Angle Stop Differs From An Angle Seat Valve

Household angle stops serve low-pressure potable water lines. They are suited to sinks, toilets, and everyday household appliances. The industrial Angle Seat Valve is different. It is built for higher-pressure, higher-temperature, or corrosive applications in steam, chemical, and HVAC systems. Angle seat valves use pistons and durable metal seats for tough service, while an Angle Stop is a simpler fixture-level shutoff for residential plumbing.

Angle Stop Types And How To Choose One

Choosing the right angle stop for a home project means considering material, operation, connection type, and special features. The following overview helps homeowners and plumbers choose Plumbing Angle Stops that are code-conscious.

Angle Stop Materials

Brass is the standard material for Angle Stops. It resists corrosion and can last 10–20 years, making it ideal for Quarter-Turn Angle Stops. Stainless steel bodies are best for humid basements, coastal areas, and outdoor hose bibs to prevent rust. Plastic-bodied stops are cheaper, but they are typically less durable and can degrade in hot-water service. Always choose a Lead-Free Angle Stop for potable water in the United States to meet federal and state standards.

Valve Operation Styles

Quarter-turn valves use a ball or disc and open with a 90-degree turn. They offer fast shutoff and better resistance to mineral buildup, which makes them useful for frequent operation and emergencies. Multi-turn valves rely on a rising stem and need several turns to open or close fully. They provide finer flow control but are more likely to leak or stick in older homes.

Connection Types

Compression Angle Stop fittings use a nut and ferrule, making them common for copper and CPVC stub-outs. They install without heat and are popular in remodels. Sweat Angle Stop joints are soldered for a slim, permanent seal and work well in tight spaces where a torch is acceptable. FIP-threaded valves attach to male adapters and usually require PTFE tape or pipe-thread sealant. Push-Fit Angle Stop models, including SharkBite-style options, can slide onto copper, CPVC, or PEX without special tools. They are useful for DIY work or cramped areas, while Compression Angle Stop options remain common where future rework is expected.

Extra Angle Stop Features

Some Angle Stop Valve models include a Water Hammer Arrestor Angle Stop. They use an air chamber or piston to absorb pressure shock from quick-closing fixtures and reduce pipe banging. In humid or coastal locations, a Coastal Angle Stop with corrosion-resistant finishes, stainless internals, and anti-seize stems can improve service life. Lead-Free Angle Stop markings on the body confirm potable-water compliance. Select a model that matches your pipe type and service expectations to avoid premature failure.

Plumbing Angle Stops

Plumbing angle stops control water flow to fixtures with a right-angle design. The choice of size and style affects both function and code compliance. The sections below explain valve markings, typical home locations, lead-free requirements, and modern installation trends.

Common Sizes And Reading Valve Markings

In most homes, the inlet side is commonly 1/2 inch nominal, while the outlet to the fixture is often 3/8 inch compression. Valve labels may show a format like 1/2 x 3/8 or 1/2” MIP x 3/8” OD. This identifies the inlet and outlet sizes. Some labels specify 3/8 COMP for compression outlets. Before buying, confirm that the inlet matches your supply piping, whether it is 1/2 FIP, 1/2 MIP, 1/2 sweat, or another style.

Common Home Placement

Angle stops are usually installed under kitchen sinks, beneath bathroom vanities, and behind toilets. They are also used for appliances such as water heaters, dishwashers, ice makers, and washing machines. Under-sink valves are commonly located at the rear of cabinets, while toilet stops are generally visible near the wall behind the tank.

Potable Water Code And Safety Notes

In the U.S., valves for drinking-water lines must meet lead-free standards for wetted surfaces. Choose a Lead-Free Angle Stop that has clear markings, documentation, or certification details. Contractors must follow local codes and provide test certifications and warranties to support compliance.

Recommended Angle Stop Standards

Modern Angle Stops commonly feature quarter-turn ball-style operation. The Quarter-Turn Angle Stop gives quick emergency shutoff and long life with brass construction. Experts often recommend a brass 1/2 x 3/8 angle stop for sinks and toilets for easier stocking and maintenance. Models with arrestors and other potable-water protection features are increasingly common in new installations.

Practical Checklist For Selection

• Confirm Valve Markings for inlet type and outlet size before purchase.
• Match the Angle Valve For Sink or toilet to supply hose fittings and tank threads.
• Specify a Lead-Free Angle Stop when the line serves potable water.
• Standardize on Quarter-Turn Angle Stop 1/2 x 3/8 units for easier repair and reliability.

Installing And Replacing Angle Stops With Tools Steps And Best Practices

Before working on a plumbing angle stop, decide whether the main water supply needs to be shut off. Only shut the main if the existing stop will not close fully, is damaged, or is frozen. For many under-sink jobs, the line can be isolated at the fixture valve itself. Always open a downstream faucet to relieve pressure and keep towels and a bucket ready.

Before starting, gather all needed tools and supplies. You will need an adjustable wrench, backup wrench, tube cutter, and deburring tool. Emery cloth, PTFE tape, a marker, and a flashlight are also helpful for clean preparation and inspection. For push-fit work, use the manufacturer’s push-fit angle stop and a PEX stiffener where needed; for compression jobs, keep spare ferrules and nuts available. Penetrating oil and a heat shield help with stubborn fittings and sweat connections.

Tool Checklist:

• Adjustable wrench plus backup wrench
• Pipe cutter and deburring tool
• PTFE tape and marker
• Push-fit valve and required stiffener
• Replacement ferrules, compression nuts, penetrating oil, and towels

Each connection type requires its own installation method. For compression, slide the nut and ferrule onto the pipe, then seat the valve against the pipe shoulder. Hand-tighten the nut and finish with a 1/4–1/2 turn using a wrench. Use a backup wrench on the valve body or outlet so the stub-out does not twist.

For push-fit installation, cut the pipe square and deburr it. Mark the insertion depth and push the valve straight on to the depth mark. After installation, give the fitting a light tug to confirm it has locked in place. Push-fit angle stop fittings can work with copper, CPVC, and PEX, but PEX may require a stiffener depending on the product.

Sweat angle stop joints require careful handling. Remove or protect nearby seals and internals, clean and flux the pipe and valve cup, heat the joint evenly, and solder. After cooling, wipe the joint to remove residue. Use a heat shield or remove seals to prevent damage during sweating.

For threaded connections such as a FIP angle stop, wrap male threads with PTFE tape using three to four wraps and start the valve by hand to avoid cross-threading. Tighten until aligned and sealed, then connect the supply line and test slowly.

Test the work by turning water on slowly and watching the joints. Open the angle stop and fixture gradually. Use a dry towel or tissue to reveal small weeps around fittings. Exercise the valve and recheck after pressure stabilizes to catch slow leaks.

Several common mistakes can cause leaks or early valve failure. Over-tightened compression nuts may deform ferrules and create leaks. Never reuse a damaged ferrule; cut back the pipe and install a new ferrule when needed. Do not solder near heat-sensitive seals unless they are protected or removed. Avoid twisting push-fit valves during insertion and always follow the manufacturer’s insertion-depth marks.

Common trouble points include a frozen or leaky stop that forces a main shutoff, misapplied PTFE tape that causes threaded leaks, and tightening outlet nuts without a backup wrench. Keep spare parts nearby and follow torque guidance for each valve type to reduce callbacks.

Common Angle Stop Issues And Fast Fixes

Homeowners often encounter small leaks and frozen handles with angle stops. A quick assessment shows whether a simple fix is enough or a full replacement is needed for long-term reliability.

Leaking At The Stem Or Handle

Stem seepage in older multi-turn valves often comes from a loose packing nut. Tightening the nut about 1/8 turn with an adjustable wrench can often solve the issue. If the leak continues, the internal washer or O-ring may be worn and replacement may be required.

Frozen Or Stuck Valves

Stuck angle stops often result from Mineral Buildup or rust. Applying a penetrating product such as WD-40 for about ten minutes may help. Gently rocking the handle back and forth may free the valve. If it remains stuck or the handle is brittle, replace the stop to avoid a flood.

Weeping Compression Joints

A persistent leak from a compression joint usually indicates a misaligned ferrule or damaged pipe end. To repair it, loosen the compression nut, reseat the ferrule, and clean the pipe surface with emery cloth. If the ferrule is worn, cut back the pipe, install a new ferrule, and tighten carefully to prevent more leaks.

When Replacement Makes Sense

Homes with frequent leaks, frozen handles, visible corrosion, or valves over ten years old should consider modern angle stops. A Quarter-Turn Upgrade to a ball-style valve can improve shutoff speed, resist Mineral Buildup, and make emergency service more dependable.

Quick Checklist

• Tighten the packing nut slightly for stem drips.
• For stuck valves, apply Penetrating Oil and use gentle back-and-forth motion.
• For compression leaks, reseat the ferrule or cut back the pipe and install a new ferrule.
• Upgrade to quarter-turn stops when valves freeze or leak repeatedly.

Regularly exercising angle stops and checking for corrosion helps identify issues early. Promptly addressing leaks, stuck valves, or weeping joints prevents larger repairs and maintains Angle Stop Reliability.

Summary

This Plumbing Angle Stops Guide shows why small fixture shutoff valves are so important. They allow homeowners to isolate specific fixtures without affecting the entire system. Choosing the right material, operation style, and connection type makes repairs easier. It also reduces the risk of water damage during upgrades.

For best performance, the industry often recommends lead-free, quarter-turn brass 1/2 x 3/8 stops. Integrated arrestors may be added where quick-closing fixtures or water hammer create noise and stress. Homeowners should periodically test valves and replace Plumbing Angle Stops that leak, stick, or corrode. Parts may cost $6 to $60, while professional installation can range from $75 to $200 depending on location and complexity.

If installation is uncertain, consulting a licensed plumber is wise. A plumber can ensure code compliance and provide warranty-backed work. That approach helps protect fixtures, reduce risk, and make future maintenance easier. It also supports current Angle Stops Plumbing best practices for today’s residential systems.
